(0)
AFO
PA-AFO
R8

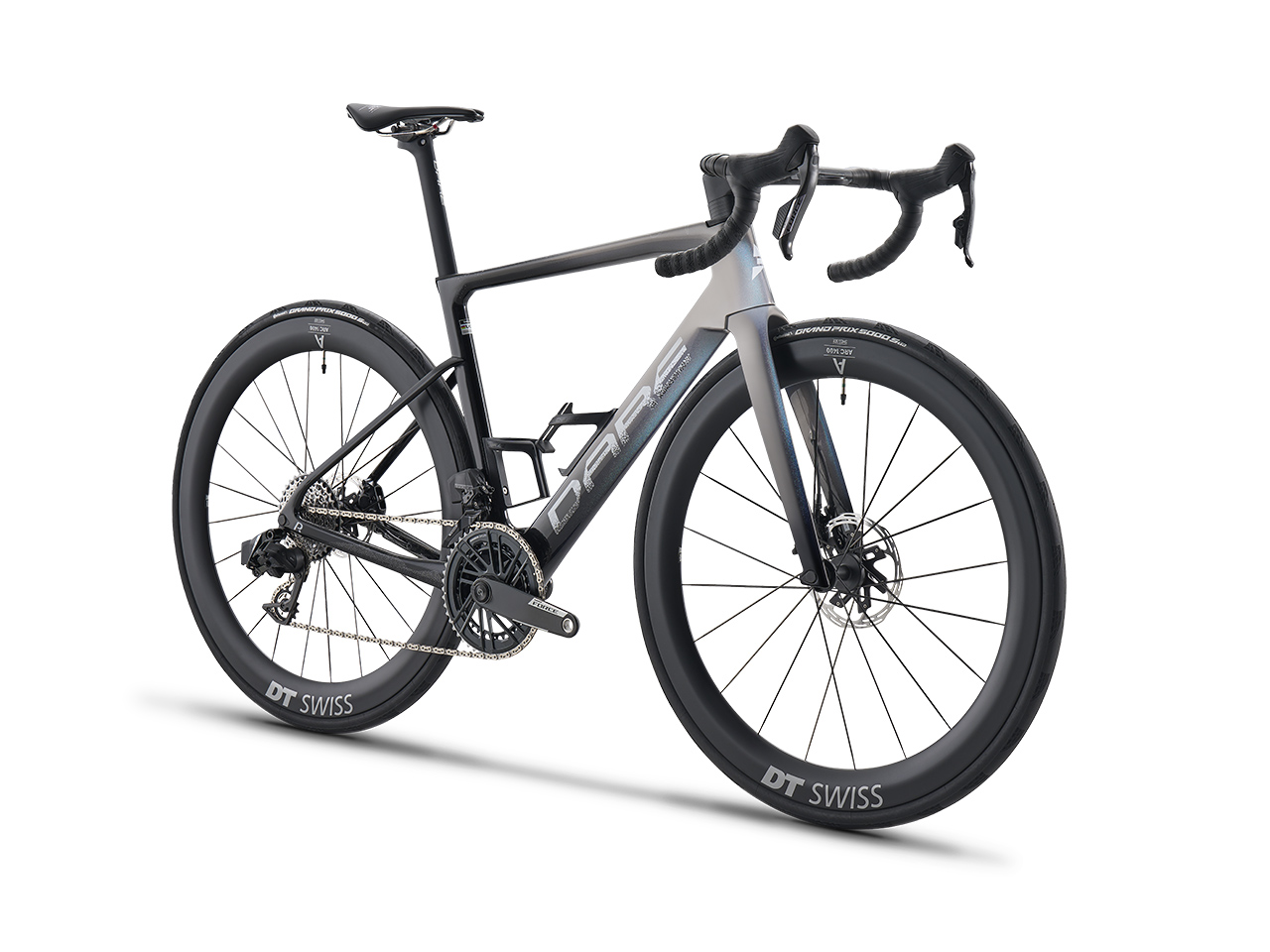

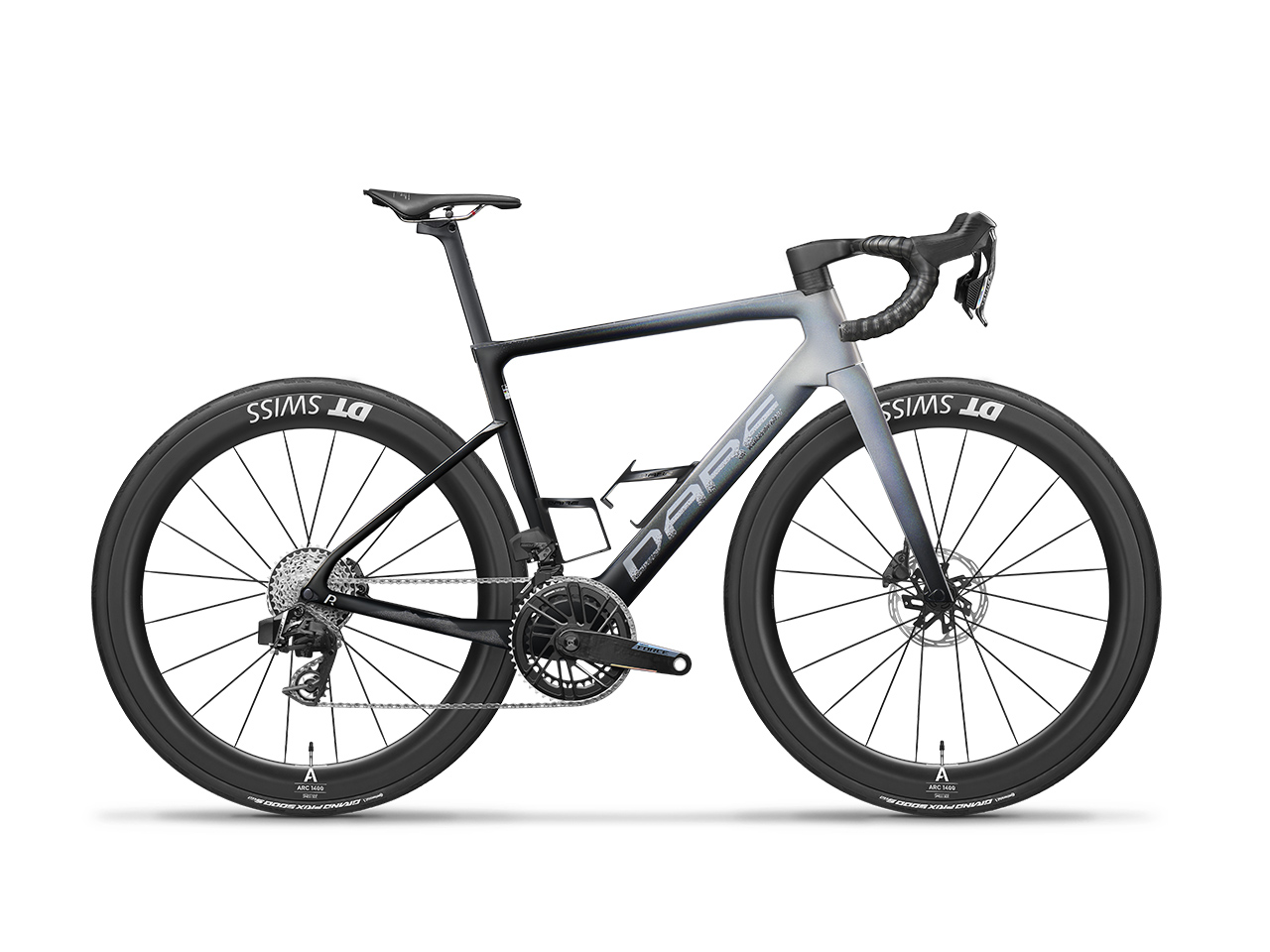

PA-AFO R8
The R8 features the 2025 SRAM Force wireless shifting, DT Swiss ARC 1400 55 wheels, full carbon integrated cockpit, dedicated aero seatpost, and bottle cages—built to help you own the road and exceed top performance standards.
Color
Ore Black
Weight
7.5kg (size M)
Frame Size
  • 2XS
  • XS
  • S
  • M
  • L
  • XL
Price
  • USD 8,270
  • EUR 7,499
  • TWD ----
Size
Stem-Handlebar
Crank
2XS
90-360 mm
160 mm
XS
90-360 mm
165 mm
S
105-380 mm
165 mm
M
105-400 mm
170 mm
L
105-400 mm
172.5 mm
XL
120-420 mm
172.5 mm
All-New SRAM Force
Equipped with the all-new SRAM Force AXS wireless groupset, the R8 delivers lightweight, smooth shifting, fully integrated braking, and race-ready performance—perfectly matched to its bold paint design.
Carbon AERO1v Cockpit
Equipped with the brand-new AERO1v carbon fiber integrated handlebar, which offers an unparalleled riding experience with ultra-lightweight, aerodynamic performance.
CeramicSpeed SLT
Featuring CeramicSpeed SLT bearings, delivering remarkably low friction and high durability, enabling you to pedal onward with no hesitation!
New Gen Torayca Carbon Fiber
Crafted with Japanese company Toray’s 3rd-gen T1100G & M46X carbon for aerospace-grade stiffness, safet.
Exclusive Aerodynamic Bottle Cage
An ultra-light carbon fiber bottle cage designed to fit perfectly with PA-AFO's meticulously calculated tube profiles, reducing drag by an additional 0.6W during riding.
M:P1 Carbon Micro-Adjust Seatpost
Specially designed for the PA-AFO, the M:P1 seatpost integrates with the frame’s aerodynamic profile. Its carbon layup enhances vertical compliance for comfort, while micro-adjust carbon wedges balance aerodynamics, comfort, and weight.
DT Swiss ARC 1400 55
The all-new DT Swiss ARC series for 2025 features a wider internal rim width, delivering enhanced aerodynamics and riding comfort across the board.
Ore Black
Silver accents shimmer on black, tracing mountain contours and grey flecks-like stars and distant peaks. The frame echoes the iridescent SRAM Force logo, merging tech and elegance. Two iconic climbs on the top tube embody fearless spirit and push riders forward.
All-New SRAM Force
Equipped with the all-new SRAM Force AXS wireless groupset, the R8 delivers lightweight, smooth shifting, fully integrated braking, and race-ready performance—perfectly matched to its bold paint design.
Carbon AERO1v Cockpit
Equipped with the brand-new AERO1v carbon fiber integrated handlebar, which offers an unparalleled riding experience with ultra-lightweight, aerodynamic performance.
CeramicSpeed SLT
Featuring CeramicSpeed SLT bearings, delivering remarkably low friction and high durability, enabling you to pedal onward with no hesitation!
New Gen Torayca Carbon Fiber
Crafted with Japanese company Toray’s 3rd-gen T1100G & M46X carbon for aerospace-grade stiffness, safet.
Exclusive Aerodynamic Bottle Cage
An ultra-light carbon fiber bottle cage designed to fit perfectly with PA-AFO's meticulously calculated tube profiles, reducing drag by an additional 0.6W during riding.
M:P1 Carbon Micro-Adjust Seatpost
Specially designed for the PA-AFO, the M:P1 seatpost integrates with the frame’s aerodynamic profile. Its carbon layup enhances vertical compliance for comfort, while micro-adjust carbon wedges balance aerodynamics, comfort, and weight.
DT Swiss ARC 1400 55
The all-new DT Swiss ARC series for 2025 features a wider internal rim width, delivering enhanced aerodynamics and riding comfort across the board.
Ore Black
Silver accents shimmer on black, tracing mountain contours and grey flecks-like stars and distant peaks. The frame echoes the iridescent SRAM Force logo, merging tech and elegance. Two iconic climbs on the top tube embody fearless spirit and push riders forward.
Technical Specifications
Frameset
Frame
DARE PA-AFO DGTM+Torayca® T1100G/M46X carbon frame
Fork
DARE PA-AFO DGTM, Toray® T1100G/M46X carbon fork, 32c max tyre clearance
Seatpost
DARE M:P1 carbon kammtail shape seatpost 350mm, 15° setback
Cockpit
Handlebar
DARE AERO1v Toray® carbon intergraded
Stem
-
Headset
CeramicSpeed SLT, upper and lower 1.5", 7mm thickness, 45 degree
Spacer
Plastic black for AERO1v, 1.125", 5mm thickness* 6pcs
Bar Tape
DARE black tattoo leather touch
Drivetrain
Shift Lever
SRAM Force AXS E1
Front Derailleur
SRAM Force AXS E1 FD
Rear Derailleur
SRAM Force AXS E1 RD
Cassette
SRAM CS XG 1270 E1 10-36T 12s
Chainwheel
SRAM Force E1 Due 48-35T
Chain
SRAM Force E1 118Li
Bottom Bracket
SRAM PF 86.5mm
Battery
SRAM EP Powerpack* 2
Brake
Brake Caliper
SRAM Force AXS E1
Disc Rotor Front
SRAM Rotor Paceline X, Centerlock, 160mm
Disc Rotor Rear
SRAM Rotor Paceline X, Centerlock, 140mm
Wheelset
Front Wheel
DT Swiss ARC 1400 DICUT® DB 55 12/100mm
Rear Wheel
DT Swiss ARC 1400 DICUT® DB 55 12/142mm
Tyre
Continental Grand Prix 5000s 28-622
Front Thru Axle
DARE thru axle 12x116mm, p1.5
Rear Thru Axle
DARE thru axle 12x162mm, p1.5
Axle Lever
DARE SL-01 hex. 6mm allen key
Saddle
Model
Prologo NAGO R4 PAS Tirox Rail
Size
2XS / XS / S: 147mm
M / L / XL: 137mm
Accessories
Bottle Cage
DARE V:B1/ V:B2 areo bottle cage
Pedal
-
Manuals
DARE_PA-AFO_R8_Manual.pdf
Special Kit
Power Meter
SRAM Quarq E1
Computer Mount
DARE PA+FRP Gramin-GoPro duo-mount for AERO1v
SRAM Spindle Power Meter E1
Equipped with the sleek Quarq E1 crank-based power meter, it offers a clean integration and precise data tracking to record your performance on every ride.
All in One Aero Computer Mount
An aerodynamic and stylish computer mount compatible with Garmin/Wahoo/Bryton computers as well as GoPro cameras and lights.
SRAM Spindle Power Meter E1
Equipped with the sleek Quarq E1 crank-based power meter, it offers a clean integration and precise data tracking to record your performance on every ride.
All in One Aero Computer Mount
An aerodynamic and stylish computer mount compatible with Garmin/Wahoo/Bryton computers as well as GoPro cameras and lights.
×
Integrated Handlebar
All carbon molded integrated handlebar, comparing with the separate stem and handlebar combination, we offer up to 12 sizes to choose from. Please see the chart for comparison.
Size：H1~H12
Traditional
Integrated
MyDARE Stem Change Offer
Once you find that the stem doesn’t fit you, you can replace the old stem with a new stem of a different size for free!
Now you can save the hassle with DARE’s “Stem Change Offer”! When you purchase a DARE bike online, in addition to freely selecting a stem of the right size, you can ask for a second stem within one month of receiving the product. This means that you will get a brand new stem for free!
